EV8YU ベルトサイズ一覧表

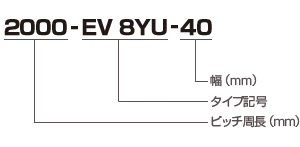

呼称例
更新日：2020.03.25
| 呼称 | ピッチ周長（mm） | 歯数 | 呼称 | ピッチ周長（mm） | 歯数 | 呼称 | ピッチ周長（mm） | 歯数 | |||
| 312-EV8YU | 312.00 | 39 | 992-EV8YU | 992.00 | 124 | 1600-EV8YU | 1600.00 | 200 | |||
| 328-EV8YU | 328.00 | 41 | 1000-EV8YU | 1000.00 | 125 | 1608-EV8YU | 1608.00 | 201 | |||
| 344-EV8YU | 344.00 | 43 | 1008-EV8YU | 1008.00 | 126 | 1616-EV8YU | 1616.00 | 202 | |||
| 408-EV8YU | 408.00 | 51 | 1016-EV8YU | 1016.00 | 127 | 1640-EV8YU | 1640.00 | 205 | |||
| 416-EV8YU | 416.00 | 52 | 1032-EV8YU | 1032.00 | 129 | 1656-EV8YU | 1656.00 | 207 | |||
| 432-EV8YU | 432.00 | 54 | 1040-EV8YU | 1040.00 | 130 | 1680-EV8YU | 1680.00 | 210 | |||
| 440-EV8YU | 440.00 | 55 | 1056-EV8YU | 1056.00 | 132 | 1688-EV8YU | 1688.00 | 211 | |||
| 464-EV8YU | 464.00 | 58 | 1064-EV8YU | 1064.00 | 133 | 1696-EV8YU | 1696.00 | 212 | |||
| 472-EV8YU | 472.00 | 59 | 1072-EV8YU | 1072.00 | 134 | 1720-EV8YU | 1720.00 | 215 | |||
| 480-EV8YU | 480.00 | 60 | 1080-EV8YU | 1080.00 | 135 | 1728-EV8YU | 1728.00 | 216 | |||
| 488-EV8YU | 488.00 | 61 | 1088-EV8YU | 1088.00 | 136 | 1736-EV8YU | 1736.00 | 217 | |||
| 504-EV8YU | 504.00 | 63 | 1096-EV8YU | 1096.00 | 137 | 1752-EV8YU | 1752.00 | 219 | |||
| 512-EV8YU | 512.00 | 64 | 1112-EV8YU | 1112.00 | 139 | 1760-EV8YU | 1760.00 | 220 | |||
| 520-EV8YU | 520.00 | 65 | 1120-EV8YU | 1120.00 | 140 | 1768-EV8YU | 1768.00 | 221 | |||
| 536-EV8YU | 536.00 | 67 | 1128-EV8YU | 1128.00 | 141 | 1776-EV8YU | 1776.00 | 222 | |||
| 544-EV8YU | 544.00 | 68 | 1136-EV8YU | 1136.00 | 142 | 1784-EV8YU | 1784.00 | 223 | |||
| 552-EV8YU | 552.00 | 69 | 1144-EV8YU | 1144.00 | 143 | 1800-EV8YU | 1800.00 | 225 | |||
| 560-EV8YU | 560.00 | 70 | 1152-EV8YU | 1152.00 | 144 | 1808-EV8YU | 1808.00 | 226 | |||
| 576-EV8YU | 576.00 | 72 | 1160-EV8YU | 1160.00 | 145 | 1816-EV8YU | 1816.00 | 227 | |||
| 600-EV8YU | 600.00 | 75 | 1168-EV8YU | 1168.00 | 146 | 1824-EV8YU | 1824.00 | 228 | |||
| 608-EV8YU | 608.00 | 76 | 1176-EV8YU | 1176.00 | 147 | 1856-EV8YU | 1856.00 | 232 | |||
| 616-EV8YU | 616.00 | 77 | 1184-EV8YU | 1184.00 | 148 | 1864-EV8YU | 1864.00 | 233 | |||
| 624-EV8YU | 624.00 | 78 | 1192-EV8YU | 1192.00 | 149 | 1872-EV8YU | 1872.00 | 234 | |||
| 632-EV8YU | 632.00 | 79 | 1200-EV8YU | 1200.00 | 150 | 1888-EV8YU | 1888.00 | 236 | |||
| 640-EV8YU | 640.00 | 80 | 1208-EV8YU | 1208.00 | 151 | 1896-EV8YU | 1896.00 | 237 | |||
| 656-EV8YU | 656.00 | 82 | 1216-EV8YU | 1216.00 | 152 | 1904-EV8YU | 1904.00 | 238 | |||
| 664-EV8YU | 664.00 | 83 | 1224-EV8YU | 1224.00 | 153 | 1912-EV8YU | 1912.00 | 239 | |||
| 680-EV8YU | 680.00 | 85 | 1232-EV8YU | 1232.00 | 154 | 1928-EV8YU | 1928.00 | 241 | |||
| 704-EV8YU | 704.00 | 88 | 1240-EV8YU | 1240.00 | 155 | 1944-EV8YU | 1944.00 | 243 | |||
| 720-EV8YU | 720.00 | 90 | 1248-EV8YU | 1248.00 | 156 | 1952-EV8YU | 1952.00 | 244 | |||
| 728-EV8YU | 728.00 | 91 | 1256-EV8YU | 1256.00 | 157 | 1976-EV8YU | 1976.00 | 247 | |||
| 呼称 | ピッチ周長（mm） | 歯数 | 呼称 | ピッチ周長（mm） | 歯数 | 呼称 | ピッチ周長（mm） | 歯数 | |||
| 744-EV8YU | 744.00 | 93 | 1264-EV8YU | 1264.00 | 158 | 2000-EV8YU | 2000.00 | 250 | |||
| 752-EV8YU | 752.00 | 94 | 1272-EV8YU | 1272.00 | 159 | 2056-EV8YU | 2056.00 | 257 | |||
| 760-EV8YU | 760.00 | 95 | 1280-EV8YU | 1280.00 | 160 | 2072-EV8YU | 2072.00 | 259 | |||
| 768-EV8YU | 768.00 | 96 | 1288-EV8YU | 1288.00 | 161 | 2120-EV8YU | 2120.00 | 265 | |||
| 776-EV8YU | 776.00 | 97 | 1296-EV8YU | 1296.00 | 162 | 2136-EV8YU | 2136.00 | 267 | |||
| 784-EV8YU | 784.00 | 98 | 1304-EV8YU | 1304.00 | 163 | 2160-EV8YU | 2160.00 | 270 | |||
| 792-EV8YU | 792.00 | 99 | 1312-EV8YU | 1312.00 | 164 | 2240-EV8YU | 2240.00 | 280 | |||
| 800-EV8YU | 800.00 | 100 | 1320-EV8YU | 1320.00 | 165 | 2248-EV8YU | 2248.00 | 281 | |||
| 808-EV8YU | 808.00 | 101 | 1328-EV8YU | 1328.00 | 166 | 2264-EV8YU | 2264.00 | 283 | |||
| 816-EV8YU | 816.00 | 102 | 1336-EV8YU | 1336.00 | 167 | 2280-EV8YU | 2280.00 | 285 | |||
| 824-EV8YU | 824.00 | 103 | 1344-EV8YU | 1344.00 | 168 | 2296-EV8YU | 2296.00 | 287 | |||
| 832-EV8YU | 832.00 | 104 | 1352-EV8YU | 1352.00 | 169 | 2304-EV8YU | 2304.00 | 288 | |||
| 840-EV8YU | 840.00 | 105 | 1360-EV8YU | 1360.00 | 170 | 2328-EV8YU | 2328.00 | 291 | |||
| 848-EV8YU | 848.00 | 106 | 1376-EV8YU | 1376.00 | 172 | 2368-EV8YU | 2368.00 | 296 | |||
| 856-EV8YU | 856.00 | 107 | 1384-EV8YU | 1384.00 | 173 | 2400-EV8YU | 2400.00 | 300 | |||
| 864-EV8YU | 864.00 | 108 | 1392-EV8YU | 1392.00 | 174 | 2456-EV8YU | 2456.00 | 307 | |||
| 872-EV8YU | 872.00 | 109 | 1400-EV8YU | 1400.00 | 175 | 2600-EV8YU | 2600.00 | 325 | |||
| 880-EV8YU | 880.00 | 110 | 1408-EV8YU | 1408.00 | 176 | 2712-EV8YU | 2712.00 | 339 | |||
| 888-EV8YU | 888.00 | 111 | 1416-EV8YU | 1416.00 | 177 | 2768-EV8YU | 2768.00 | 346 | |||
| 896-EV8YU | 896.00 | 112 | 1424-EV8YU | 1424.00 | 178 | 2800-EV8YU | 2800.00 | 350 | |||
| 904-EV8YU | 904.00 | 113 | 1432-EV8YU | 1432.00 | 179 | 2944-EV8YU | 2944.00 | 368 | |||
| 912-EV8YU | 912.00 | 114 | 1440-EV8YU | 1440.00 | 180 | 3144-EV8YU | 3144.00 | 393 | |||
| 920-EV8YU | 920.00 | 115 | 1448-EV8YU | 1448.00 | 181 | 3200-EV8YU | 3200.00 | 400 | |||
| 928-EV8YU | 928.00 | 116 | 1456-EV8YU | 1456.00 | 182 | 3440-EV8YU | 3440.00 | 430 | |||
| 936-EV8YU | 936.00 | 117 | 1464-EV8YU | 1464.00 | 183 | 3600-EV8YU | 3600.00 | 450 | |||
| 944-EV8YU | 944.00 | 118 | 1480-EV8YU | 1480.00 | 185 | 3848-EV8YU | 3848.00 | 481 | |||
| 952-EV8YU | 952.00 | 119 | 1496-EV8YU | 1496.00 | 187 | 3920-EV8YU | 3920.00 | 490 | |||
| 960-EV8YU | 960.00 | 120 | 1520-EV8YU | 1520.00 | 190 | 4400-EV8YU | 4400.00 | 550 | |||
| 968-EV8YU | 968.00 | 121 | 1544-EV8YU | 1544.00 | 193 | 5008-EV8YU | 5008.00 | 626 | |||
| 976-EV8YU | 976.00 | 122 | 1568-EV8YU | 1568.00 | 196 | ||||||
| 984-EV8YU | 984.00 | 123 | 1576-EV8YU | 1576.00 | 197 |
